FLEXÃO SIMPLES

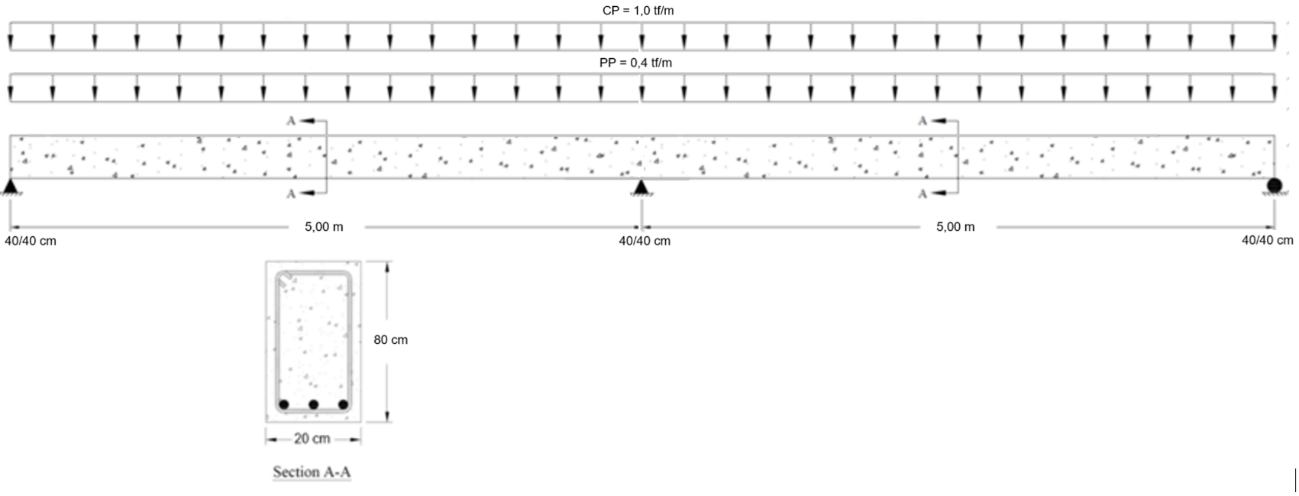

Neste exemplo, será dimensionada a armadura longitudinal e transversal de uma viga submetida a Flexão Simples utilizando como base a Norma Cirsoc-2005, conforme dados abaixo:


Concreto: H-25 / Aço: ADN420

bw: 20 cm / h: 80 cm


TQSMu+ 29 kN.m / Mu- 55 kN.mSoftware BMu+ 27 kN.m / Mu- 54,9 kN.mSoftware CMu+ 30,5 kN.m / Mu- 54,3 kN.m


Flexão+:












aa4d066615b46c244c0c95afeec2809c.pngaa4d066615b46c244c0c95afeec2809c.png 7b70fe3b4c2d064641a7061ada610d4d.png


TQS = 3,36 cm²Software B = 1,23 cm²Software C = 5,17 cm²

3,39 cm² ≥ 3,36 cm² → OK!!


øMn (96,23 KN.m) ≥ Mu (29,00 KN.m) → OK!!

Flexão-:














TQS = 2,56 cm²Software B = 2,51 cm²Software C = 5,17 cm²

3,14 cm² ≥ 2,56 cm² → OK!!


øMn (89,31 KN.m) ≥ Mu (55,00 KN.m) → OK!!

Cortante:

TQSSoftware BSoftware C
Vu = 5,73 tVu,design = 3,83 tVu = 5,48 tVu,design = 3,98 tVu = 5,70 tVu,design = 3,80 t

eacaea16320d627a489d6de817affb32.png 7bb367397cb7c88332f5a35676605d1d.png 8c08b5c4d4937317b06dc51a85c72e9c.png 7e330f17cb0214beed1d72e66ca5a6a3.png



62c10ce43d27d61c466867e61c9e123b.png62c10ce43d27d61c466867e61c9e123b.png OK!



Ø0,75 → øVn ≥ Vu → 3,83 ≥ 3,83 → OK!!

Área de Aço:



1a5b39d95181673f2a90c0c8c79359af.png1a5b39d95181673f2a90c0c8c79359af.png0,00 ≤ 1,55 → Adotado 4ab3c11a642ded3c352fedae41c99a35.png!!

Espaçamento:




Øt = 6 mm → Av = 1,60 cm²/m → ø6 c/ 35 cm

    øVn (13,50 t) ≥ Vu (3,83 t) → OK!!
