FLEXÃO SIMPLES

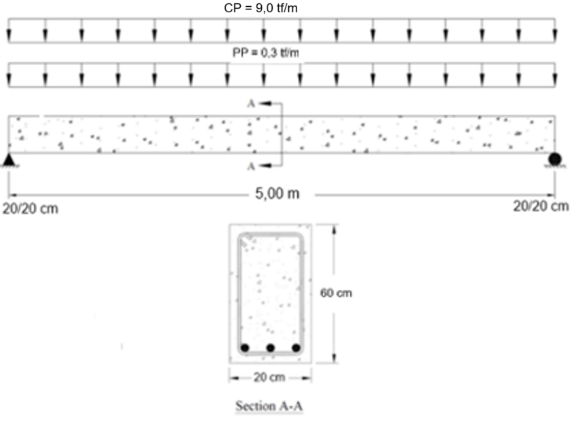

Neste exemplo, será dimensionada a armadura longitudinal e transversal de uma viga submetida a Flexão Simples utilizando como base a Norma Cirsoc-2005, conforme dados abaixo:


Concreto: H-25 / Aço: ADN420

bw: 20 cm / h: 60 cm

Mu:

TQS = 373,00 kN.mSoftware B = 383,7 kN.mSoftware C = 373,3 kN.m


Flexão:
















TQSAs = 20,59 cm²A's = 2,45 cm²Software BAs = 24,15 cm²A's = 0,0 cm²Software CAs = 22,73 cm²A's = 2,04 cm²

20,59 cm² ≥ 3,75 cm² → OK!!


øMn (376,83 KN.m) ≥ Mu (373,00 KN.m) → OK!!

Cortante:

TQSSoftware BSoftware C
Vu = 32,59 tVu,design = 23,90 tVu = 31,25 tVu,design = 23,85 tVu = 32,53 tVu,design = 23,70 t

eacaea16320d627a489d6de817affb32.png 7bb367397cb7c88332f5a35676605d1d.png cbfaaef077a39ed77e930fd72e314a5d.png 3317df4ebaa0634e948aa4e6e99704f8.png



62c10ce43d27d61c466867e61c9e123b.png62c10ce43d27d61c466867e61c9e123b.png OK!



Ø0,75 → øVn ≥ Vu → 23,90 ≥ 23,90 → OK!!

Área de Aço:



1a5b39d95181673f2a90c0c8c79359af.png1a5b39d95181673f2a90c0c8c79359af.png 9,53 ≥ 1,55 → OK!!

Espaçamento:




Øt = 8 mm → Av = 10,00 cm²/m → ø6 c/ 10 cm

    øVn (24,73 t) ≥ Vu (23,90 t) → OK!!
