Vigas - ACI Example - Continous Beam

FLEXÃO SIMPLES

Neste exemplo, será dimensionada a armadura longitudinal e transversal de uma viga submetida a Flexão Simples seguindo modelo do ACI-SP17-14 - Beam Example 1 - Continous Interior Beam:





Given:

Load

Service additional dead load D = 15 psf

Service live load L = 65 psf


Material properties

fy = 60000 psi

fck = 5000 psi

Ec = 4030000 psi

Es = 29000000 psi

Span length: 36 ft

Beam width: 18 in.

Beam Depth: 30 in

Column dimensions: 24 in. x 24 in

Tributary width: 14 ft

Slab thickness: 7 in.


Self-weight

Beam: wb = 0.56 kip/ft

Slab: ws = 1.1 kip/ft

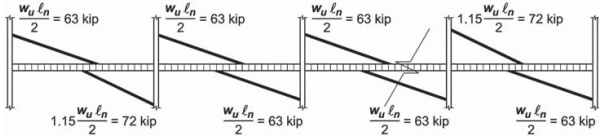

Shear diagram:


ACI




Moment diagram:


ACI

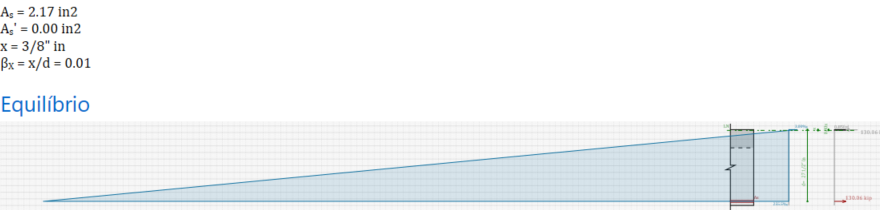

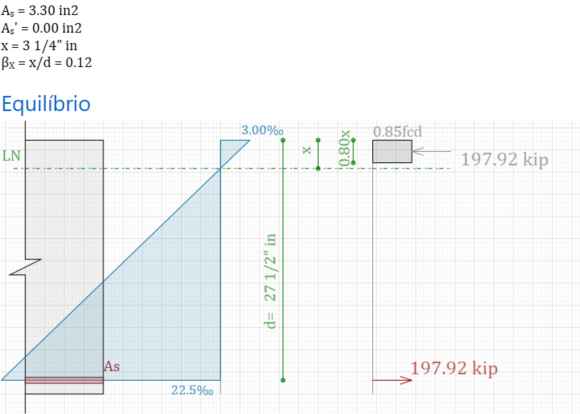

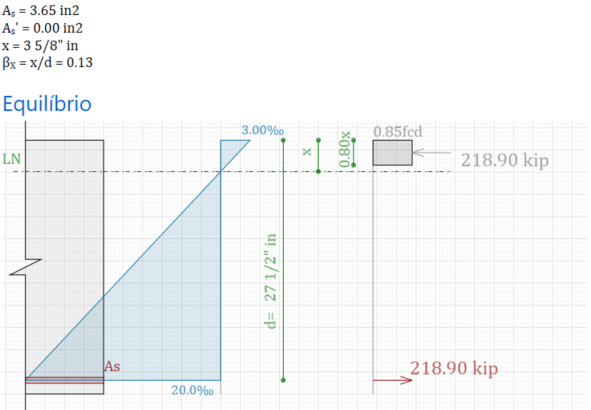

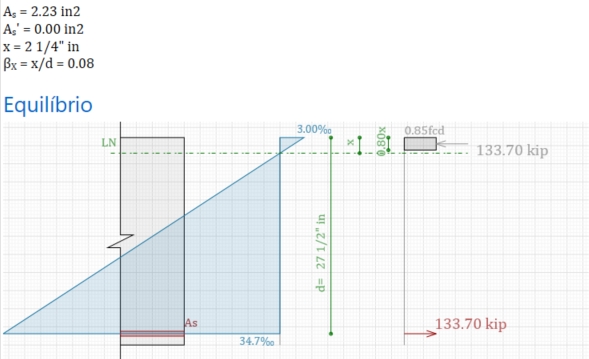

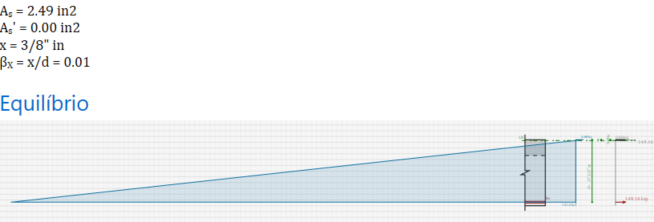

Required Reinforcement:


1.




2.




3.




4.



5.



Tension Controlled! → ø 0,90 OK!

As,min (ACI 318-19 – 9.6.1.2)




Shear:


7bb367397cb7c88332f5a35676605d1d.png 8f7f445e0ea052aaa7c2dce63eb7896c.png b5814122497bdf8d134ad80174465a80.png




Vs ≤ Vs,lim OK!

    Ø0,75 → øVn ≥ Vu → 63,50 ≥ 63,50 → OK!!

    Shear Reinforcement:






    1a5b39d95181673f2a90c0c8c79359af.png1a5b39d95181673f2a90c0c8c79359af.png0,009 ≤ 0,016 → 4ab3c11a642ded3c352fedae41c99a35.png!!


    Espaçamento:



    8b4c578af9c587a34a740e9beac68d2c.png8b4c578af9c587a34a740e9beac68d2c.png→ #3 c/ 12 in → 0,018 in²/in


    øVn (75,62 kip) ≥ Vu (63,50 kip)

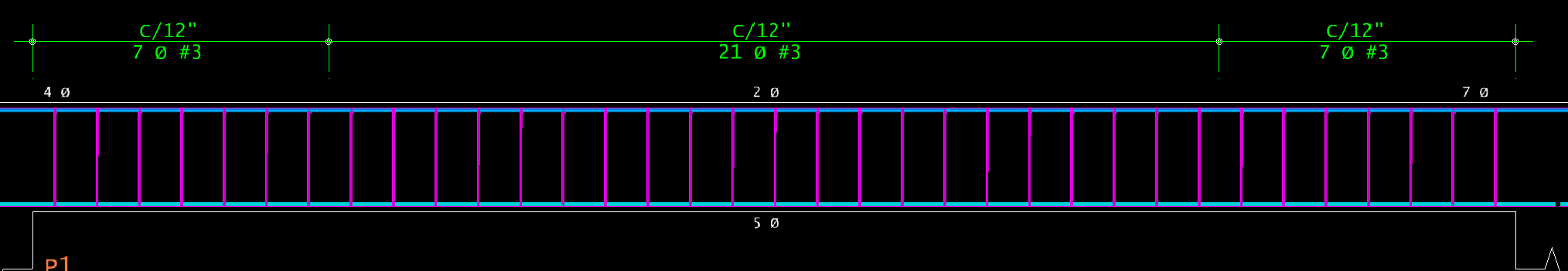

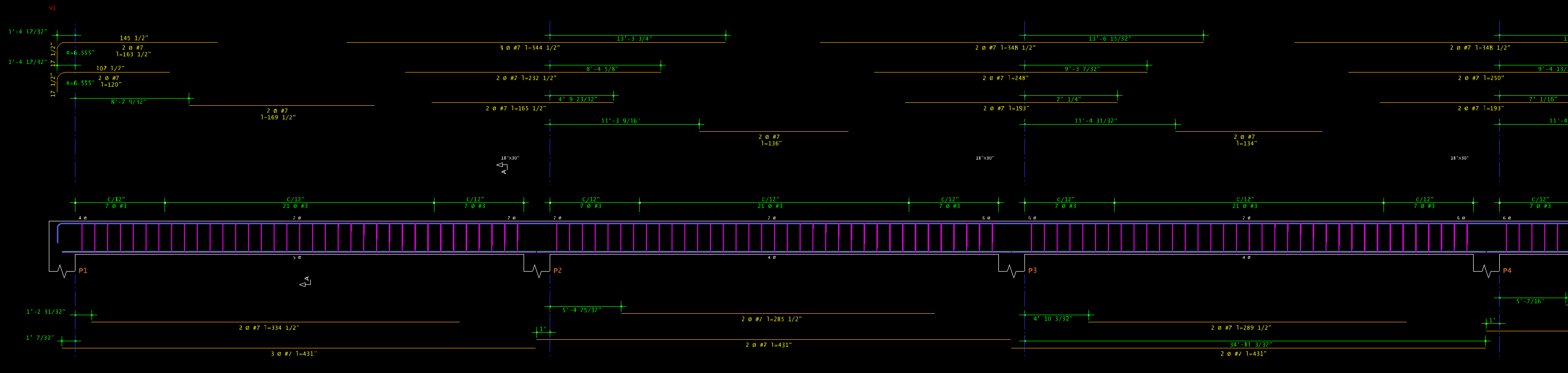

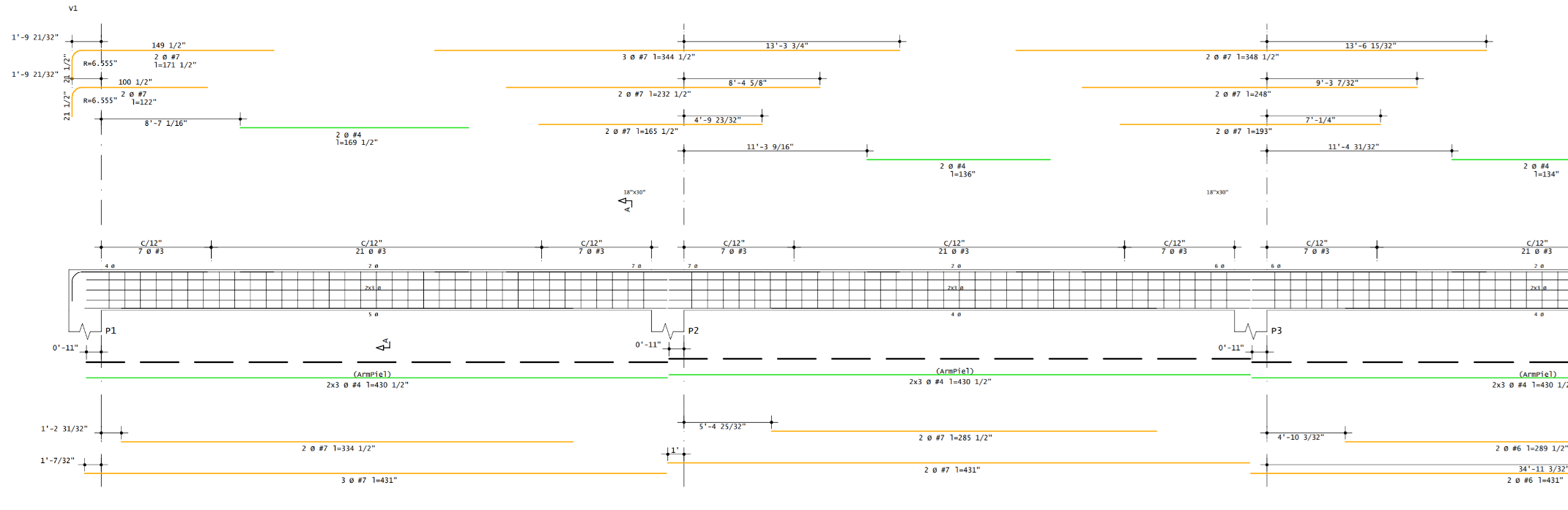

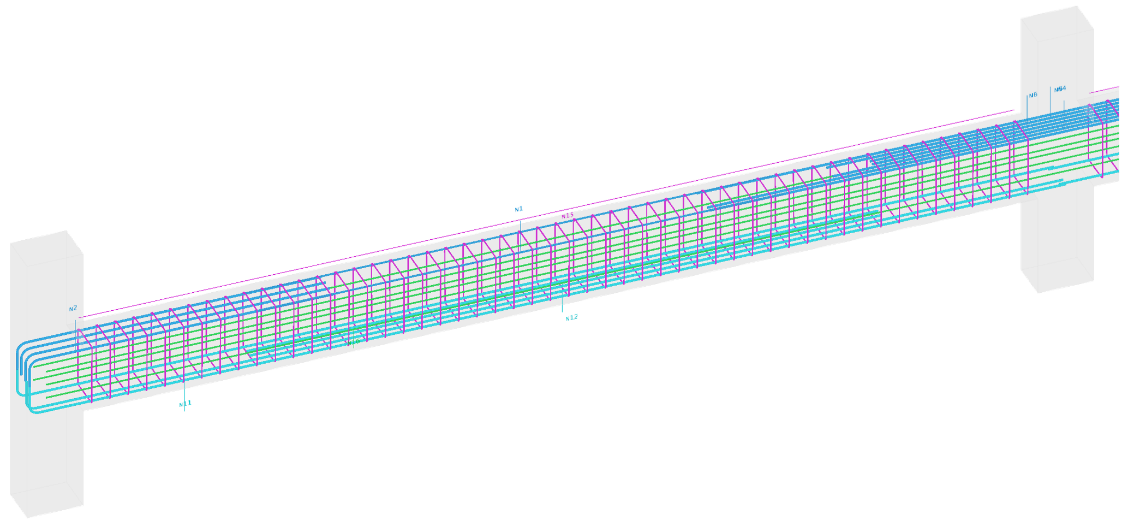

    Final Design using #7 and #3 stirrups in TQS:
