FLEXÃO SIMPLES

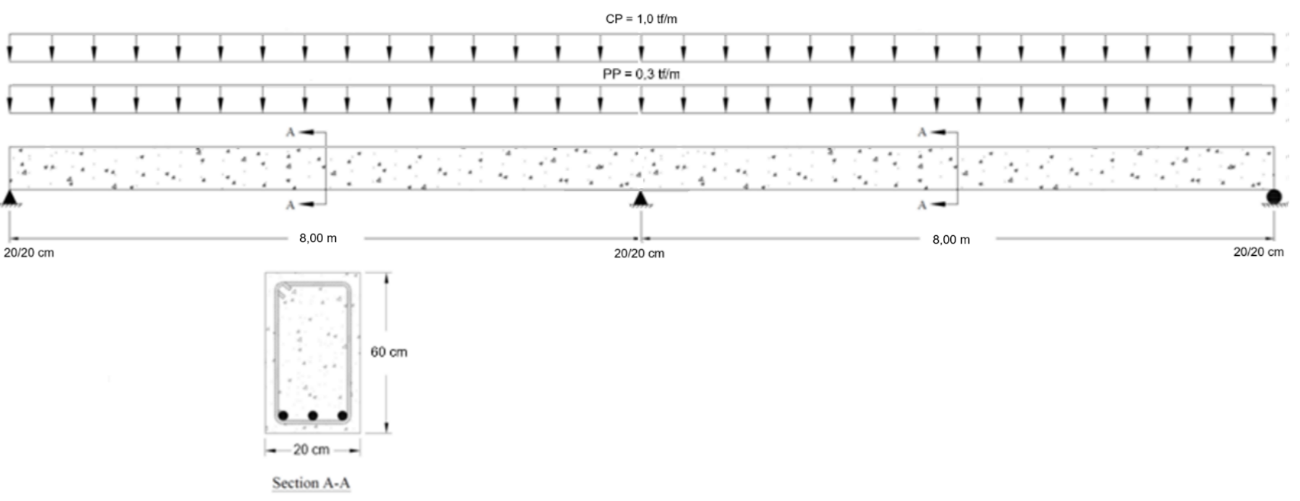

Neste exemplo, será dimensionada a armadura longitudinal e transversal de uma viga submetida a Flexão Simples utilizando como base a Norma ACI318-19, conforme dados abaixo:


Concreto - C25 (4000 psi) / Aço – ADN420 (60 ksi)

bw: 8 in / h: 24 in

TQSMu+ 681,45 kip.in / Mu- 1247,85 kip.inSoftware BMu+ 684,11 kip.in / Mu- 1258,47 kip.inSoftware CMu+ 641,63 kip.in / Mu- 1162 kip.in



Flexão+:









As,min (ACI 318-19 – 9.6.1.2)





TQS = 0,60 in²Software B = 0,64 in²Software C = 0,58 in²

0,60 in2 ≥ 0,60 in2 → OK!


øMn (685,20 kip.in) ≥ Mu (681,45 kip.in) → OK!!


Verificação do fator de redução (ACI318-19 – 21.2.2)


Linha Neutra: c3bf1cc5034ec46fdfa4689ddb149863.pngc3bf1cc5034ec46fdfa4689ddb149863.png


0,0393 ≥ 0,005 → OK! Tension Controlled! → ø 0,90 OK!


Flexão-:









As,min (ACI 318-19 – 9.6.1.2)






TQS = 1,13 in²Software B = 1,17 in²Software C = 1,05 in²

1,24 in2 ≥ 1,13 in2 → OK!


øMn (1364,63 kip.in) ≥ Mu (1247,85 kip.in) → OK!!


Verificação do fator de redução (ACI318-19 – 21.2.2)


Linha Neutra: 45d563da43f5380016cfffe9c6511c2b.png45d563da43f5380016cfffe9c6511c2b.png


0,02 ≥ 0,005 → OK! Tension Controlled! → ø 0,90 OK!

Cortante:


TQSSoftware BSoftware C
Vu = 19,47 kipsVu,design = 16,87 kipsVu = 19,13 kipsVu,design = 16,98 kipsVu = 19,20 kipsVu,design = 16,54 kips

7bb367397cb7c88332f5a35676605d1d.png 7e17887067fbdbb15dc91c5aabdbc281.png e1712ede43a86f33cdbbc3cf422c1203.png




Vs ≤ Vs,lim OK!

    Ø0,75 → øVn ≥ Vu → 16,87 ≥ 16,87 → OK!!

    Área de Aço:





    1a5b39d95181673f2a90c0c8c79359af.png1a5b39d95181673f2a90c0c8c79359af.png 0,00037 ≤ 0,0067 → 4ab3c11a642ded3c352fedae41c99a35.png!! 0,0067 in2!!


    Espaçamento:



    8b4c578af9c587a34a740e9beac68d2c.png8b4c578af9c587a34a740e9beac68d2c.png→ #3 c/ 10 in


    øVn (38,04 kips) ≥ Vu (16,87 kips)
