FLEXÃO SIMPLES

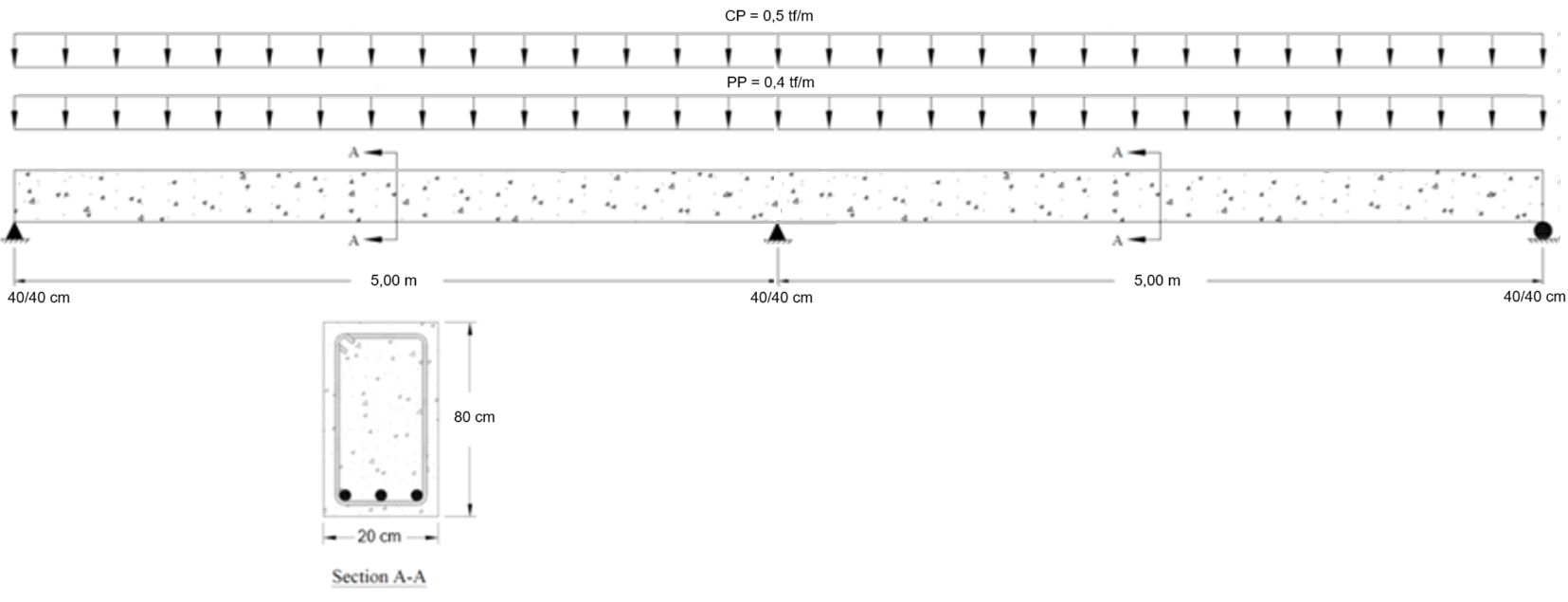

Neste exemplo, será dimensionada a armadura longitudinal e transversal de uma viga submetida a Flexão Simples utilizando como base a Norma ACI318-19, conforme dados abaixo:


Concreto - C25 (4000 psi) / Aço – ADN420 (60 ksi)

bw: 8 in / h: 31,5 in

TQSMu+ 160,19 kip.in / Mu- 299,13 kip.inSoftware BMu+ 153,99 kip.in / Mu- 312,41 kip.inSoftware CMu+ 172,58 kip.in / Mu- 307,98 kip.in



Flexão+:









As,min (ACI 318-19 – 9.6.1.2)



9b94e59cf37273e1a4fd07a06cb8843d.png9b94e59cf37273e1a4fd07a06cb8843d.png 385d4ee3d328571cb1f0a37f2dfdc3a7.png



TQS = 0,55 in²Software B = 0,13 in²Software C = 0,80 in²

0,55 in2 ≥ 0,55 in2 → OK!


øMn (854,35 kip.in) ≥ Mu (160,19 kip.in) → OK!!


Verificação do fator de redução (ACI318-19 – 21.2.2)


Linha Neutra: e04c0bbfc41ab4b93b9ae5baf4015310.pnge04c0bbfc41ab4b93b9ae5baf4015310.png


0,33 ≥ 0,005 → OK! Tension Controlled! → ø 0,90 OK!


Flexão-:









As,min (ACI 318-19 – 9.6.1.2)



5187597cbe8e969ee6a8a404a65a9172.png5187597cbe8e969ee6a8a404a65a9172.png 385d4ee3d328571cb1f0a37f2dfdc3a7.png



TQS = 0,55 in²Software B = 0,26 in²Software C = 0,80 in²

0,55 in2 ≥ 0,55 in2 → OK!


øMn (854,35 kip.in) ≥ Mu (299,13 kip.in) → OK!!


Verificação do fator de redução (ACI318-19 – 21.2.2)


Linha Neutra: 95a12bcd80a175ebd7ef3669c023b957.png95a12bcd80a175ebd7ef3669c023b957.png


0,16 ≥ 0,005 → OK! Tension Controlled! → ø 0,90 OK!

Cortante:


TQSSoftware BSoftware C
Vu = 8,02 kipsVu,design = 6,55 kipsVu = 7,61 kipsVu,design = 5,58 kipsVu = 7,81 kipsVu,design = 5,29 kips

7bb367397cb7c88332f5a35676605d1d.png b71c3d4586cbf9302848fed19a335a9a.png b2e0299529d0a92f305555397fe63754.png




Vs ≤ Vs,lim OK!

    Ø0,75 → øVn ≥ Vu → 6,55 ≥ 6,55 → OK!!

    Área de Aço:





    1a5b39d95181673f2a90c0c8c79359af.png1a5b39d95181673f2a90c0c8c79359af.png 0,0 ≤ 0,0067 → 4ab3c11a642ded3c352fedae41c99a35.png!! 0,0067 in2!!


    Espaçamento:



    8b4c578af9c587a34a740e9beac68d2c.png8b4c578af9c587a34a740e9beac68d2c.png→ #3 c/ 10 in


    øVn (51,37 kips) ≥ Vu (6,55 kips)
