FLEXÃO SIMPLES

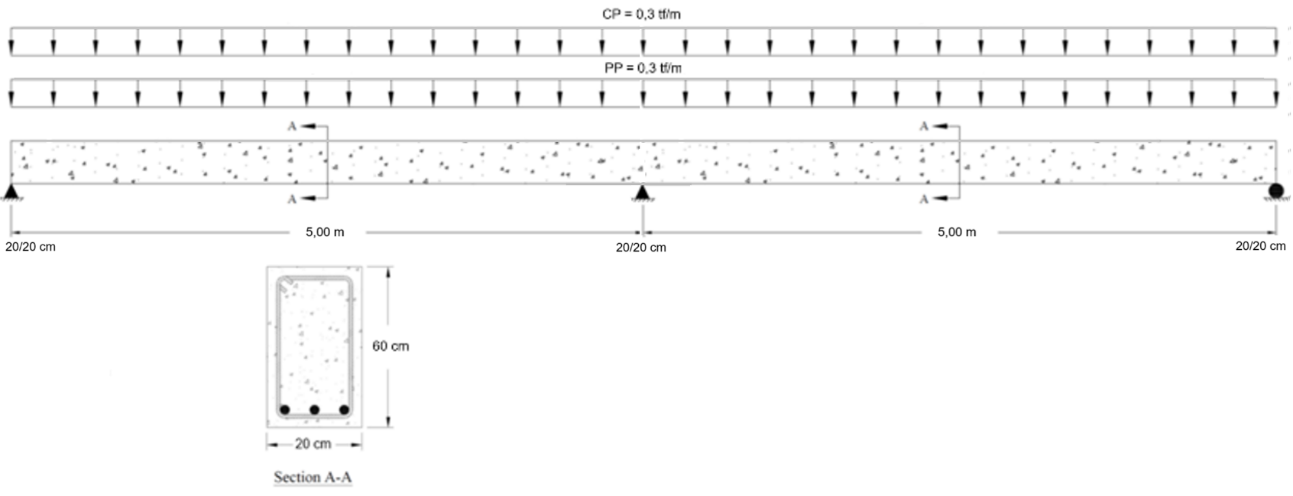

Neste exemplo, será dimensionada a armadura longitudinal e transversal de uma viga submetida a Flexão Simples utilizando como base a Norma ACI318-19, conforme dados abaixo:


Concreto - C25 (4000 psi) / Aço – ADN420 (60 ksi)

bw: 8 in / h: 24 in

TQSMu+ 124 kip.in / Mu- 230,1 kip.inSoftware BMu+ 124 kip.in / Mu- 227,5 kip.inSoftware CMu+ 115,05 kip.in / Mu- 223,91 kip.in



Flexão+:









As,min (ACI 318-19 – 9.6.1.2)






TQS = 0,15 in²Software B = 0,14 in²Software C = 0,60 in²

0,22 in2 ≥ 0,15 in2 → OK!


øMn (256,96 kip.in) ≥ Mu (124,00 kip.in) → OK!!


Verificação do fator de redução (ACI318-19 – 21.2.2)


Linha Neutra: 2fdea6a8ab30b47ab3d007db195a086b.png2fdea6a8ab30b47ab3d007db195a086b.png


0,02 ≥ 0,005 → OK! Tension Controlled! → ø 0,90 OK!


Flexão-:









As,min (ACI 318-19 – 9.6.1.2)






TQS = 0,27 in²Software B = 0,26 in²Software C = 0,60 in²

0,33 in2 ≥ 0,27 in2 → OK!


øMn (383,28 kip.in) ≥ Mu (230,10 kip.in) → OK!!


Verificação do fator de redução (ACI318-19 – 21.2.2)


Linha Neutra: 6a4ae979cb258bbbbe4cfa8de6435442.png6a4ae979cb258bbbbe4cfa8de6435442.png


0,13 ≥ 0,005 → OK! Tension Controlled! → ø 0,90 OK!

Cortante:


TQSSoftware BSoftware C
Vu = 5,59 kipsVu,design = 4,41 kipsVu = 5,49 kipsVu,design = 3,16 kipsVu = 5,64 kipsVu,design = 4,41 kips

7bb367397cb7c88332f5a35676605d1d.png 1f6d2d4fc34d614cd7461dd2c6356c9b.png 9dcdb46b1ed97d91e02cc26cb45d807d.png




Vs ≤ Vs,lim OK!

    Ø0,75 → øVn ≥ Vu → 4,41 ≥ 4,41 → OK!!

    Área de Aço:





    1a5b39d95181673f2a90c0c8c79359af.png1a5b39d95181673f2a90c0c8c79359af.png 0,0 ≤ 0,0067 → 4ab3c11a642ded3c352fedae41c99a35.png!! 0,0067 in2!!


    Espaçamento:



    8b4c578af9c587a34a740e9beac68d2c.png8b4c578af9c587a34a740e9beac68d2c.png→ #3 c/ 10 in


    øVn (38,14 kips) ≥ Vu (4,41 kips)
