FLEXÃO SIMPLES

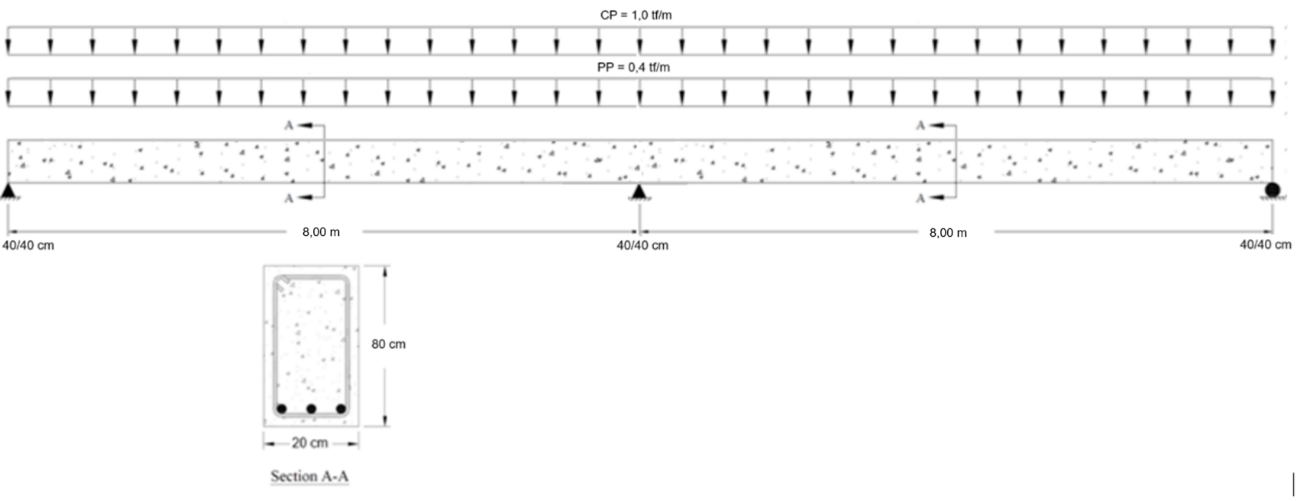

Neste exemplo, será dimensionada a armadura longitudinal e transversal de uma viga submetida a Flexão Simples utilizando como base a Norma ACI318-19, conforme dados abaixo:


Concreto - C25 (4000 psi) / Aço – ADN420 (60 ksi)

bw: 8 in / h: 31,5 in

TQSMu+ 619,50 kip.in / Mu- 1185,90 kip.inSoftware BMu+ 597,38 kip.in / Mu- 1202,72 kip.inSoftware CMu+ 690,30 kip.in / Mu- 1197,41 kip.in



Flexão+:









As,min (ACI 318-19 – 9.6.1.2)



398a668b8d75ec20d763468e934d20f2.png398a668b8d75ec20d763468e934d20f2.png 385d4ee3d328571cb1f0a37f2dfdc3a7.png



TQS = 0,55 in²Software B = 0,52 in²Software C = 0,80 in²

0,55 in2 ≥ 0,55 in2 → OK!


øMn (854,35 kip.in) ≥ Mu (619,50 kip.in) → OK!!


Verificação do fator de redução (ACI318-19 – 21.2.2)


Linha Neutra: 6ac3be8cfacfa15522409e46e7271906.png6ac3be8cfacfa15522409e46e7271906.png


0,083 ≥ 0,005 → OK! Tension Controlled! → ø 0,90 OK!


Flexão-:









As,min (ACI 318-19 – 9.6.1.2)





TQS = 0,78 in²Software B = 0,79 in²Software C = 0,80 in²

0,80 in2 ≥ 0,78 in2 → OK!


øMn (1228,07 kip.in) ≥ Mu (1185,90 kip.in) → OK!!


Verificação do fator de redução (ACI318-19 – 21.2.2)


Linha Neutra: 3c0b21303e204f6a1c11c52c301b2004.png3c0b21303e204f6a1c11c52c301b2004.png


0,041 ≥ 0,005 → OK! Tension Controlled! → ø 0,90 OK!

Cortante:


TQSSoftware BSoftware C
Vu = 19,65 kipsVu,design = 15,59 kipsVu = 18,89 kipsVu,design = 15,72 kipsVu = 19,80 kipsVu,design = 15,66 kips

7bb367397cb7c88332f5a35676605d1d.png 1d2b1a7db7807cecdab3a4e7e9552df3.png f87fa35d0ec87361c672900bc0abb282.png




Vs ≤ Vs,lim OK!

    Ø0,75 → øVn ≥ Vu → 15,59 ≥ 15,59 → OK!!

    Área de Aço:


    583e57aaf35cfb1014ae39989fc2d632.png0,0067 in2!!



    1a5b39d95181673f2a90c0c8c79359af.png1a5b39d95181673f2a90c0c8c79359af.png 0,0 ≤ 0,0067 → 4ab3c11a642ded3c352fedae41c99a35.png!! 0,0067 in2!!


    Espaçamento:



    8b4c578af9c587a34a740e9beac68d2c.png8b4c578af9c587a34a740e9beac68d2c.png→ #3 c/ 10 in


    øVn (51,37 kips) ≥ Vu (15,59 kips)
