Vigas - Flexão Simples 10

FLEXÃO SIMPLES

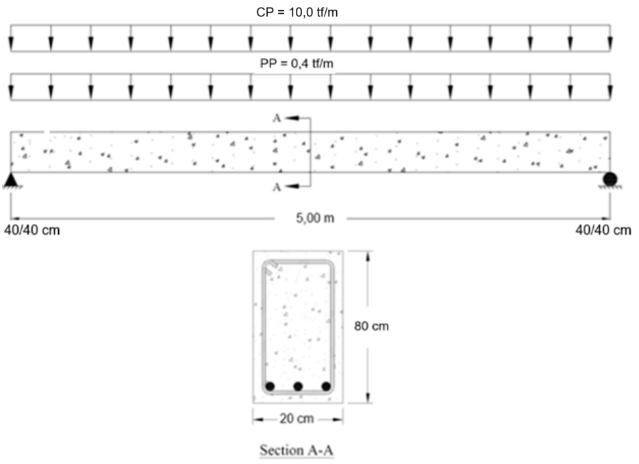

Neste exemplo, será dimensionada a armadura longitudinal e transversal de uma viga submetida a Flexão Simples utilizando como base a Norma Cirsoc-2005, conforme dados abaixo:


Concreto: H-25 / Aço: ADN420

bw: 20 cm / h: 80 cm

Mu:

TQS = 306,0 kN.mSoftware B = 310,8 kN.mSoftware C = 307,4 kN.m


Flexão:













TQS = 11,44 cm2Software B = 11,89 cm2Software C = 10,26 cm2

11,44 cm² ≥ 5,09 cm² → OK!!


øMn (321,12 KN.m) ≥ Mu (306,00 KN.m) → OK!!

Cortante:

TQSSoftware BSoftware C
Vu = 36,45 tVu,design = 22,36 tVu = 33,49 tVu,design = 22,31 tVu = 36,35 tVu,design = 22,10 t

eacaea16320d627a489d6de817affb32.png 7bb367397cb7c88332f5a35676605d1d.png e555728f3f71f7e54dfcb2c01c467b0b.png 559653159c530c50dfdfa00709b7b813.png



62c10ce43d27d61c466867e61c9e123b.png62c10ce43d27d61c466867e61c9e123b.png OK!



Ø0,75 → øVn ≥ Vu → 22,36 ≥ 22,36 → OK!!

Área de Aço:



1a5b39d95181673f2a90c0c8c79359af.png1a5b39d95181673f2a90c0c8c79359af.png5,32 ≥ 1,55 → OK!!

Espaçamento:




Øt = 8 mm → Av = 5,56 cm²/m → ø8 c/ 18 cm

    øVn (22,93 t) ≥ Vu (22,36 t) → OK!!
