FLEXÃO SIMPLES

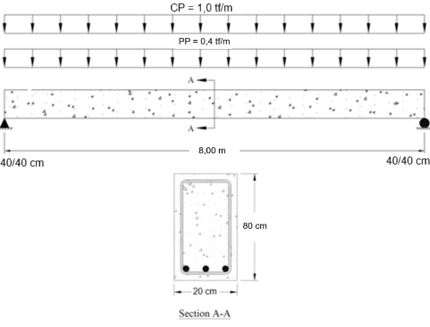

Neste exemplo, será dimensionada a armadura longitudinal e transversal de uma viga submetida a Flexão Simples utilizando como base a Norma ACI318-19, conforme dados abaixo:


Concreto - C25 (4000 psi) / Aço – ADN420 (60 ksi)

bw: 8 in / h: 31,50 in

Mu:

TQS = 846,06 kip.inSoftware B = 838,10 kip.inSoftware C = 858,45 kip.in



Flexão:








As,min (ACI 318-19 – 9.6.1.2)





TQS = 0,73 in2Software B = 0,74 in2Software C = 0,80 in2

0,80 in2 ≥ 0,73 in2 → OK!


øMn (1222,67 kip.in) ≥ Mu (846,06 kip.in) → OK!!


Verificação do fator de redução (ACI318-19 – 21.2.2)


Linha Neutra: 49286f85d57679f03d8f9ea67d658d85.png49286f85d57679f03d8f9ea67d658d85.png


0,059 ≥ 0,005 → OK! Tension Controlled! → ø 0,90 OK!


Cortante:


TQSSoftware BSoftware C
Vu = 17,11 kipsVu,design = 13,03 kipsVu = 16,11 kipsVu,design = 12,94 kipsVu = 17,20 kipsVu,design = 13,01 kips

7bb367397cb7c88332f5a35676605d1d.png 7b0a17cecb6058193a6c1bc71cc68ac4.png 09d0107d226121a8673d21b045e9f44e.png




Vs ≤ Vs,lim OK!

    Ø0,75 → øVn ≥ Vu → 13,03 ≥ 13,03 → OK!!

    Área de Aço:








    1a5b39d95181673f2a90c0c8c79359af.png1a5b39d95181673f2a90c0c8c79359af.png 0,00 ≤ 0,0067 → 4ab3c11a642ded3c352fedae41c99a35.png!! 0,0067 in2!!


    Espaçamento:



    8b4c578af9c587a34a740e9beac68d2c.png8b4c578af9c587a34a740e9beac68d2c.png→ #3 c/ 10 in


    øVn (51,26 kips) ≥ Vu (13,03 kips)
